Both are single phase induction motors in the capacitor start motor a capacitor is in series with the start winding which is wound 90 degrees physically from the run winding. Capacitor start Capacitor run motors are a type of split phase two phase induction motor designed to operate from single phase ac power.

Capacitor Start Motor Basics And Tutorials Transmission Lines Design And Electrical Engineering Hub

A motor capacitor is special type of capacitor that works in conjunction with AC induction motors these capacitors are responsible for starting up AC motors or powering them up to keep them.

. These capacitors are considered continuous duty while the motor is powered and will remain in the circuit while the start capacitor drops out. It varies but a start. Answer 1 of 9.

60677 previous price 60677. They are also usually always 50 and 60 Hz rated. Therefore the 1HP motor has better efficiency of the 17HP motor because 17HP is required in a PSC just to start the fan while the high starting torque of the CSCR motor.

Without the capacitor the. The reason to use motor run or start capacitors is that they provide a second shifted-in-time phase for the motor so that the windings can generate torque in two dimensions. In fact the start capacitor and the run capacitor have the same function except that the starting capacitor has a larger capacity and can get a larger starting current thereby generating a larger.

Capacitor Start and Capacitor Run induction Motor uses two capacitors C 1 and C 2 for starting one of them C 2 being cut out for running by means of a centrifugal switch S. A start capacitor is found in the circuit of start windings when the motor is starting. A start capacitor provides an initial jolt of electricity to get a motor running whereas a run capacitor helps keep the motor running smoothly.

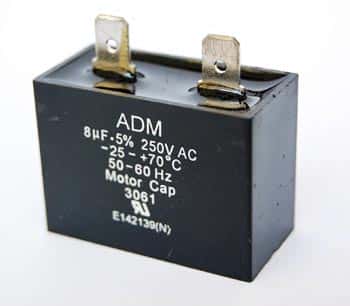

Answer 1 of 4. This capacitor contains a higher capacitance than a run capacitor. Examples would be a 35 uF at 370V run capacitor and an 88108 uF at 250V start capacitor.

The starting or auxiliary winding and the main or running. The capacitor is used to make a single-phase motor rotate in one direction only by supplying a phase-shifted voltage to a starting winding on the motor. Some of the advantages of capacitor start capacitor run motor are as follows.

The capacitor-start capacitor-run induction motor consists of a squirrel cage rotor and its stator has two windings viz. Free 3 day shipping Free 3 day shipping. Marathon Motors 5Kcr46mn0055x Capacitor-StartRun General Purpose Motor 12.

Start capacitors increase motor starting torque and allow a motor to be cycled on and off. Most start capacitor applications use a rating of 50-1200 uf capacitance and voltages of 110125 165 220250 and 330 VAC. Moving on to the first and most obvious advantage of using a capacitor start.

A capacitor run motor uses a capacitor permanently connected in series with auxiliary winding creating and maintaining a phase difference between the two windings of. In this article Ill go over the. Unlike Resistive Start induction motors they.
